Product Description

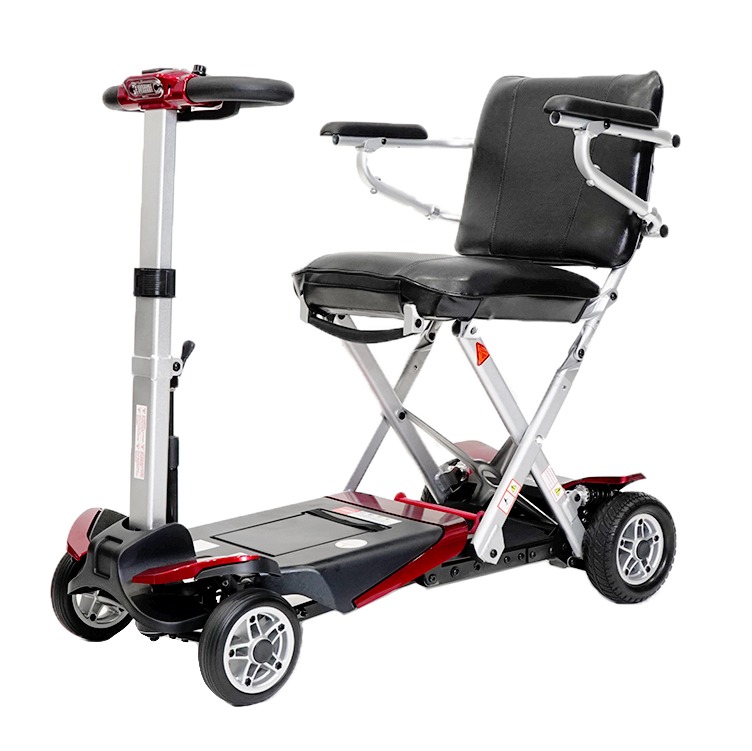

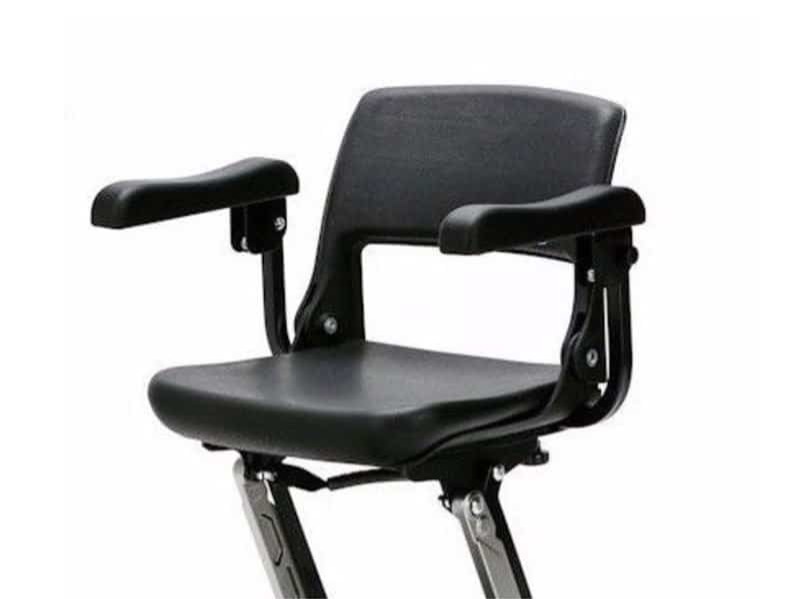

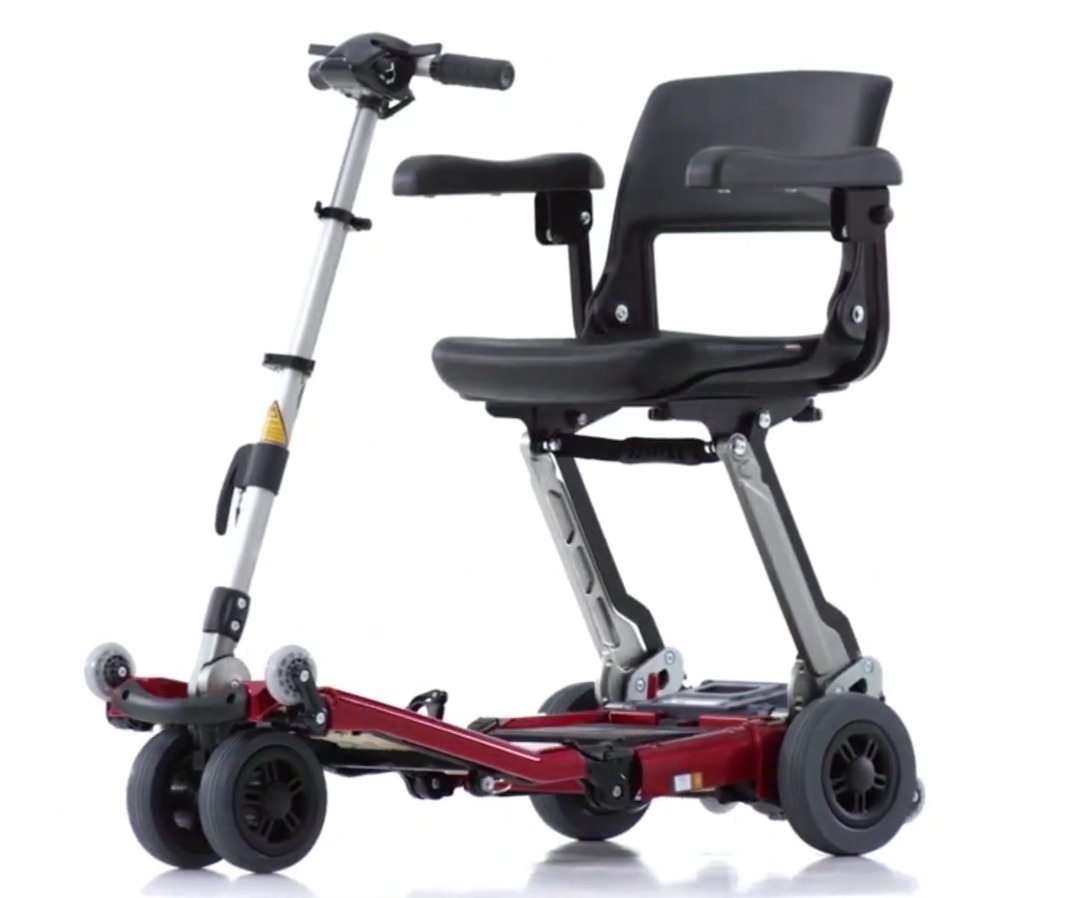

The Luggie standard is the original design that made the Luggie brand a worldwide success over 10 years ago. With some improvements in materials and features, but true to its original design concept. Like all Luggie brand scooters, the Luggie Standard allows you to benefit from the excellent maneuverability and turning circle in addition to the convenient easy folding mechanism. The Luggie comes with a lithium battery, travels up to 20km on a fully charged battery. This travel-scooter doesn't come with any armrests, but they can be added as an optional extra or you can have a look at the Luggie Elite, which comes with armrests included. For storage space, simply check out our Luggie Accessories such as the under-seat folding basket. The Luggie range of portable scooters, also offers an adjustable seat-height, making it a perfect choice for people of the smaller stature. The Luggie Standard offers a great alternative to other travel-scooters, as it has been designed to assist in lifting the scooter into the boot of a car. A luggie can be folded in 3 different ways. While the folding process is slightly more complex than an automatic folding scooter such as the Solax Charge or Solax Transformer Soft-tail. The long-shape and design of the scooter allows for easier loading/unloading. |
|||
The Flat Fold / Surfboard Fold | |||
1. Lower the tiller using the two latches 2. Pull the side lever and fold the tiller down into the locking latch on the base 3. Lock it into place 4. Lower the seat, by squeezing the big red button under the seat with one hand and lowering the seat with the other 5. Fold-down the backrest 6. You are now ready to load your Luggie Standard Scooter into your car Please note the images on the right are featuring a Luggie Super, it is slightly larger, has a higher weight capacity than the Luggie standard and comes with an under-seat bag and armrests. |
|||
The Quick-Fold/ Lazy Surfboard | |||
1. Fold-down the seat by squeezing the red Lever under the seat and using your other hand to lower down the seat 2. Fold-down the backrest 3. Collapse the tiller down using the two tiller height adjustment latches 4. Lift the angle adjustment tiller and lower the tiller down until it hits the seat 5. You are now ready to load your Luggie Standard This fold is quicker than the original flat-fold method, however, because the step, which locks the tiller to the base is skipped, it means that the tiller remains loose, which needs to be taken into consideration when loading the scooter. |
|||
The Box Fold | |||
1. Collapse down the tiller, using the 2 latches 2. Open the latch on the base 3. Fold-down the tiller using the lever and place it into the open latch 4. Lock the tiller in place by closing the latch and securing it 5. Open the black locked latches located on the base next to the locked-in handlebars 6. Fold-down the backrest 7. Squeeze the red lever under the seat with one hand while using your other hand to lower down the seat 8. Once the seat is all the way lowered and locked in place hold the scooter under the seat and lift. This will lift up the scooter allowing it to collapse in the centre 9. Give it a slight lean to the back and the weight of the scooter will lock it into place 10. Lift up the tiller and lock it into place 11. You can now easily wheel your scooter like a suitcase This fold is great for travel, as it takes up less room in the boot, If you are travelling by air, remember to remove the battery before you fold your scooter. The box fold is also a great option if you are using a hoist such as the LM or LC Hoist to lift the Luggie in and out of your car. |
|||
Loading | |||
Using the Surfboard/Lazy Surfboard Fold | |||
Lift the front end of your luggie into the boot of your car and allow the back end to rest on the ground. Once the front end is in your car, bend down and pick up the back end and slide or swing this in as well. The Luggies allow for this unique lifting style thanks to their longer shape when folded and strategically placed soft castors. This means you only lift half the weight of the scooter at a time! |
|||
Using the Box Fold | |||
The Luggie Standard has a handle, located under the seat, which can be used to lift the scooter into the car, while in the box fold. However, this fold is mainly used to lift the scooter, using a hoist as the box shape is more difficult to handle than the Surfboard shape. | |||

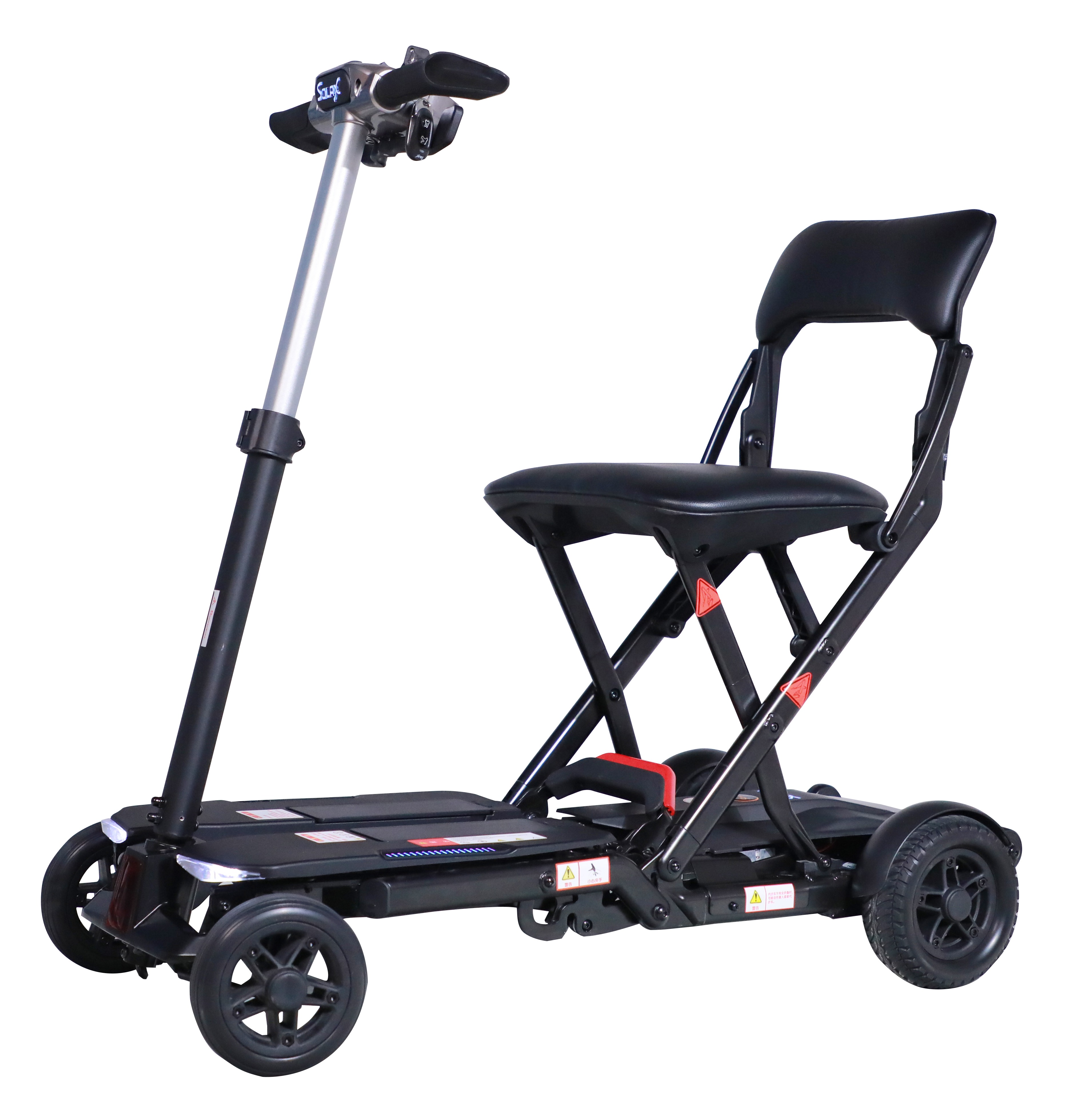

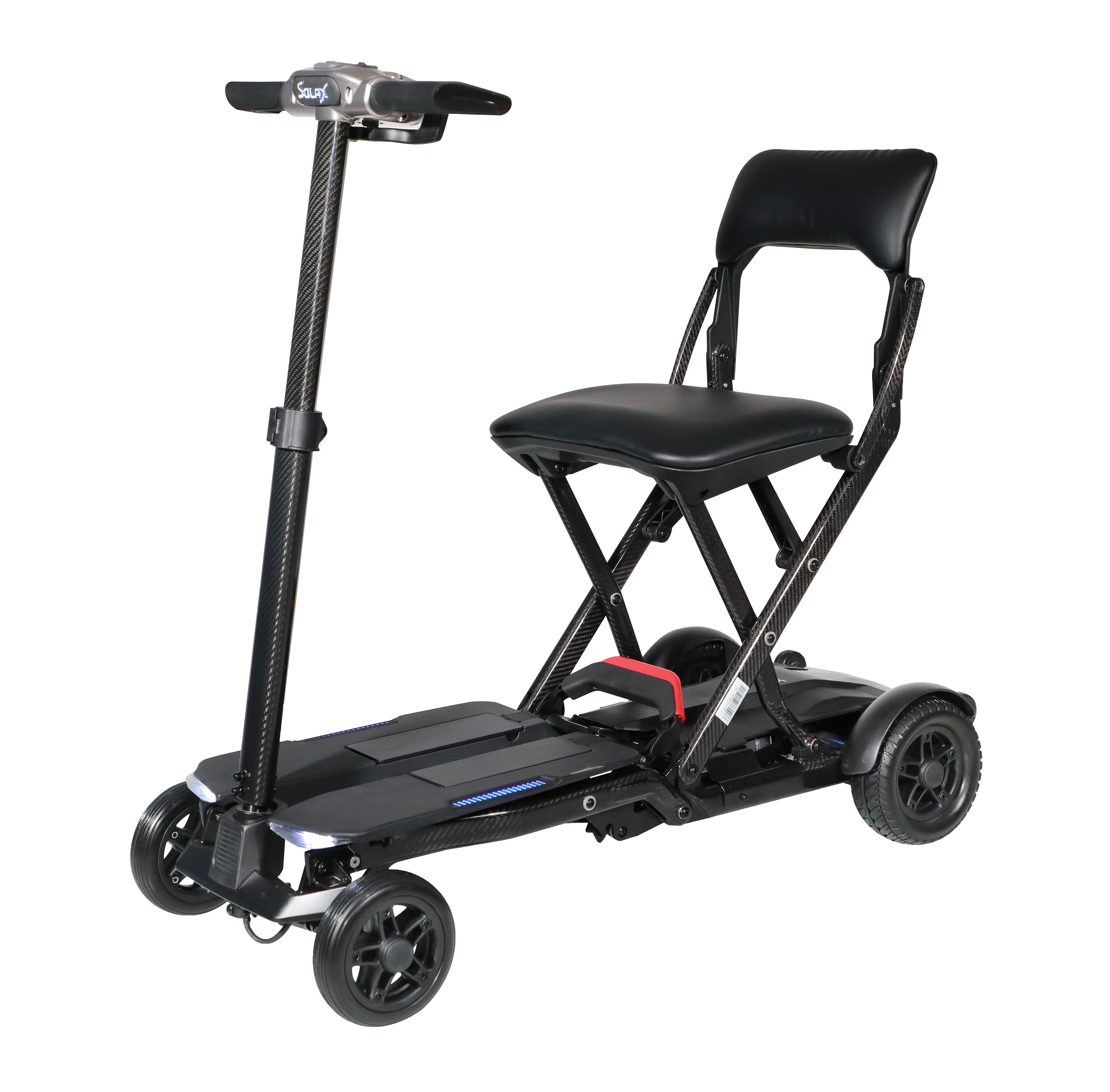

Do you like all the features of the Luggie Standard, but it is just outside of your budget? Check out the Luggie Eco, featuring the same great design, but regular SLA batteries hence are available at a very competitive price. Or would you like some additional convenience and a travel scooter that folds at a push of a button? If so check out our Solax Maleta. |
Specifications
ISO Certification |
ISO 13485:216, ISO 14971:2012 |
Adjustable Seat Height |
Yes - 2 height settings |
Adjustable Tiller Angle |
Yes |
Adjustable Tiller Height |
Yes 460mm - 780mm |
Anti-Tip Mechanism |
Rear anti-tip wheels |
Armrests |
Optional Extra |
Battery |
8.5Ah Lithium |
Battery Range |
10 - 20km |
Battery Weight |
2kg |
Charger |
24V 5Ah Off-Board Lithium |
Dimensions |
390mm x 370mm |
Dimensions when folded |
660 x 455 x 432 |
Distance between armrests |
410 - 570 |
Drive Wheel |
178mm |
Front Wheel |
150mm |
Ground Clearance |
37mm |
Lights |
No |
Maximum Speed |
6.4km/h |
Mirrors |
No |
Motor |
24V 120W |
Number of Components |
1 + Battery |
Seat height from Deck |
370mm or 420mm |
Seat height from Floor |
555mm |
Seat Padding |
Light |
Slope ability |
6° |
Suspension |
No |
Swivel Seat |
No |
Turning Radius |
900mm |
Tyres |
Solid - Puncture Proof |
Weight Capacity |
114kg |
Weight with Battery |
25.5kg |
Weight without Battery |
23.5kg |
Wheel to Wheel |
770mm |
Speed |
6km/h |
